Description

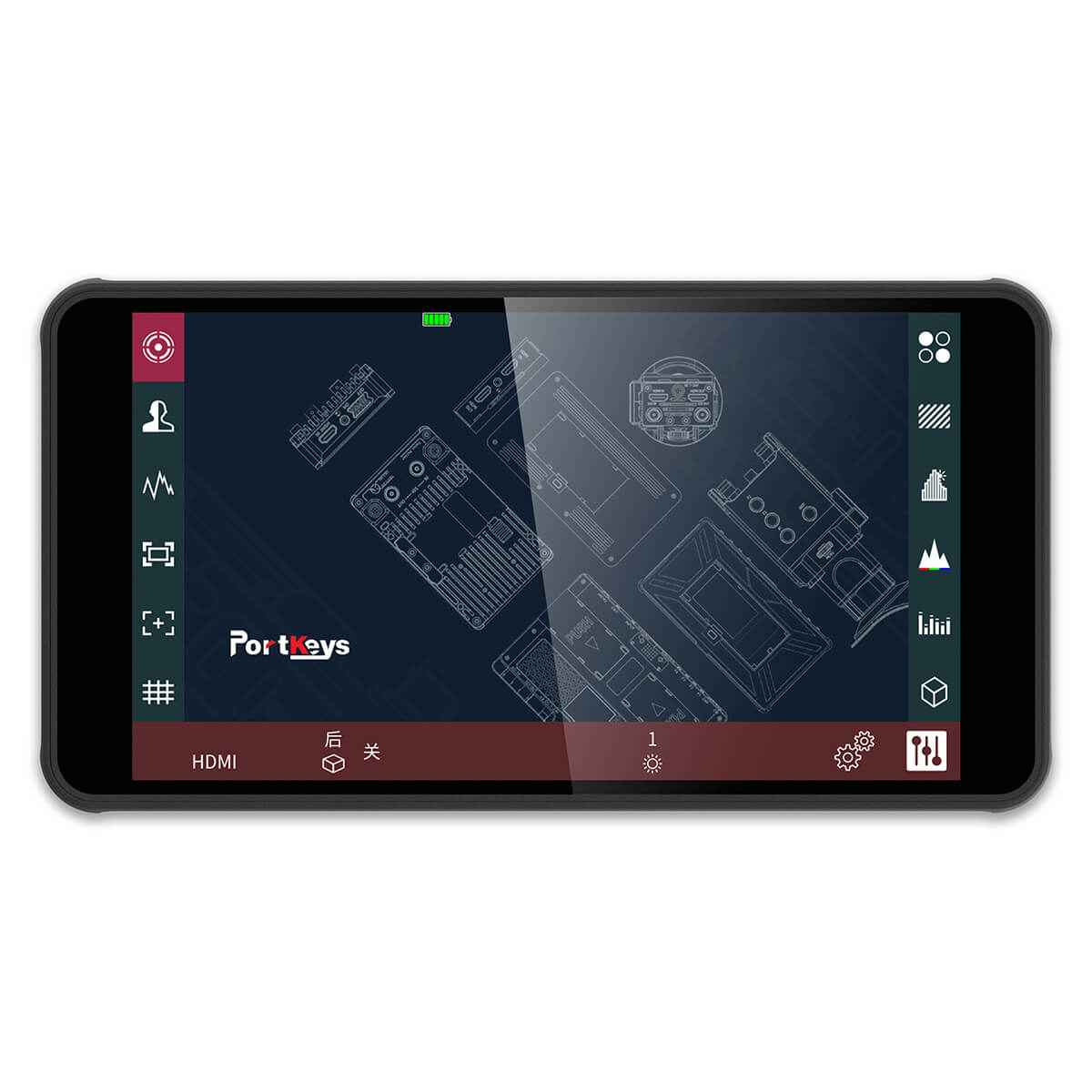

PT5 II is an entry-level monitor for filmmakers looking for a compact on-camera display. The PT5 II features a 10 bit 5-inch 1920 x 1080
display with a 500nit brightness and 1000:1 contrast ratio. PT5 II housing with additional heat sink holes. This monitor is much more
affordable.

Compact, durable, and lightweight, PT5 II is capable of traveling to any on-set environment.

Portkeys PT5 5″ 4K HDMI Touchscreen Monitor Highlights

• 5″ 1920 x 1080 supports up to HD 4K video
• 500nit  brightness
• Wide color gamut
• 10bit (8+2FRC)
• 3D LUT support via USB input

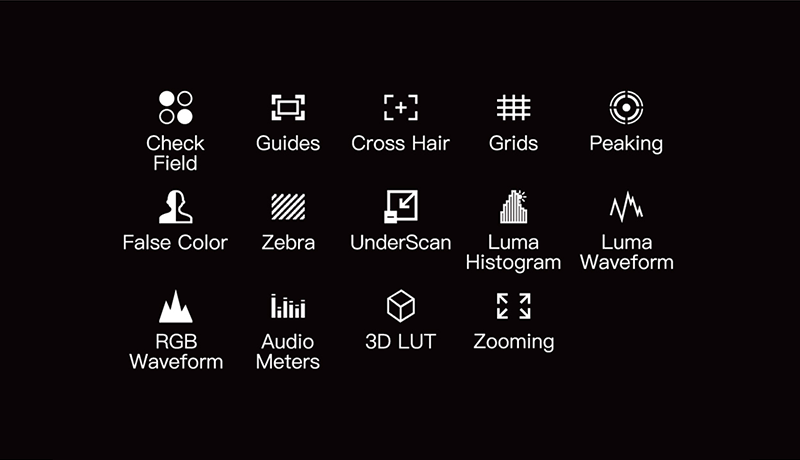

• Monitoring tools include focus peaking, false color, image flip, histogram, color temperature, custom RGB, and more
• 1000:1 Contrast Ratio

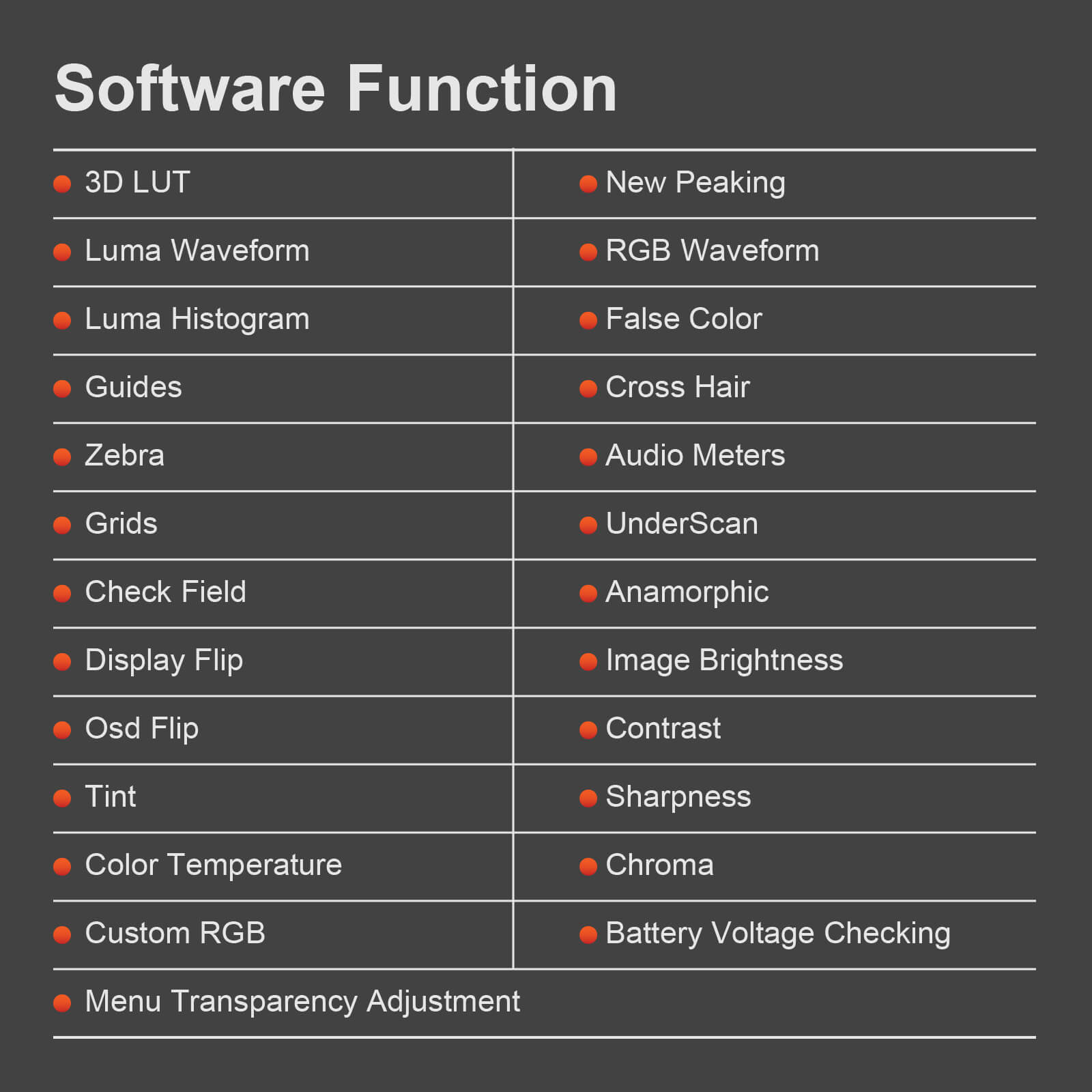

Key Functions

• Custom 3D LUT monitoring.
• Exposure tools: RGB and Luma Waveform, Zebra, False Color, Histogram.
• Focusing tools: Peaking, Zooming.
• Framing tools: Check Field, Grids, Image Flip, Cross Hair.
• Audiometers and battery level.
• Display adjustments: Anamorphic, Color Temperature, Contrast, Sharpness, Brightness, Tint, Backlight, Display Flip, Underscan.

Interface
